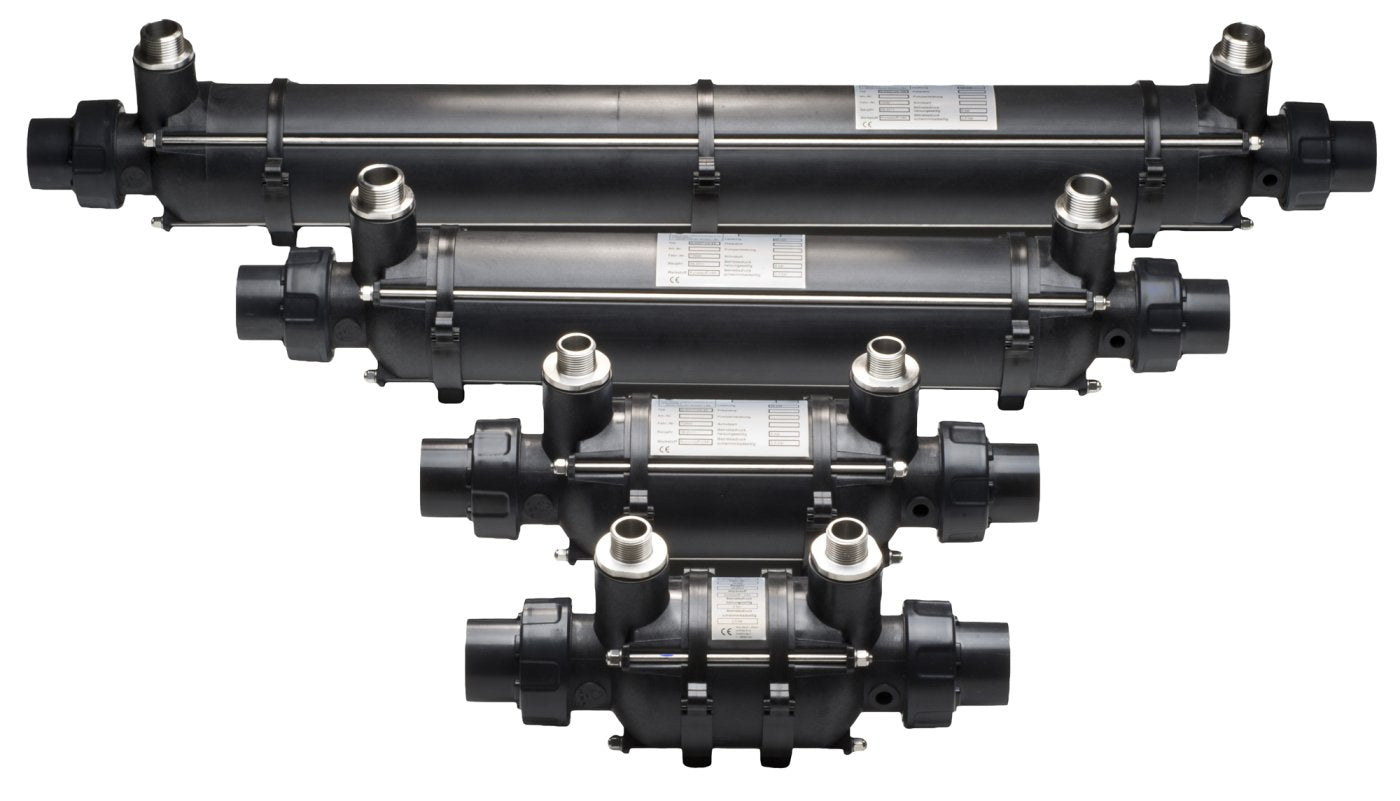

Plastics heat exchanger District heating 25 – 126 kW
£258.00 GBP
Sale price
£258.00 GBP
£289.00 GBP
Unit price
per
Sale
Sold out
Tax included.
Shipping calculated at checkout.
In stock
Couldn't load pickup availability

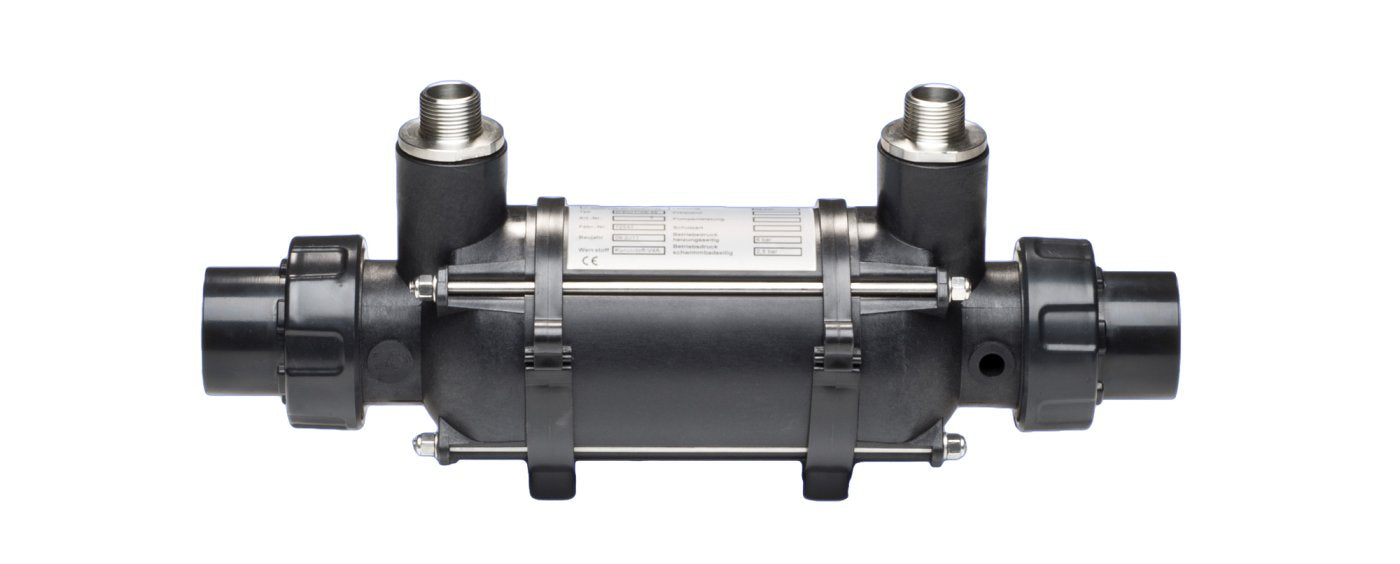

Water/water heat exchanger with corrugated tubes in crossflow – unlike smooth tubes, corrugated tubes made of stainless steel or titanium offer high energy efficiency at low material costs. The plastic shell withstands high pressure and is corrosion-resistant. The individual components are sealed with silicone gaskets, ensuring a long service life for the entire heat exchanger. The cost-effectiveness and quality make the titanium version particularly attractive. Like all tubular heat exchangers, they must be integrated into the pool water circuit either directly or via a bypass system.
For heating swimming pools, spas, and similar facilities
- Corrugated tubular heat exchangers, counterflow controlled
- Plastic shell (PP 30% FG) with corrugated tube in stainless steel AISI 316 or titanium
- Higher energy efficiency compared to smooth tubes thanks to a larger exchange surface on corrugated tubes
- Chlorinated water resistant with corrugated stainless steel tube, seawater resistant with corrugated titanium tube
- Must be integrated directly into the pool's water circuit or via a bypass system
- Weight: 1.0 kg
