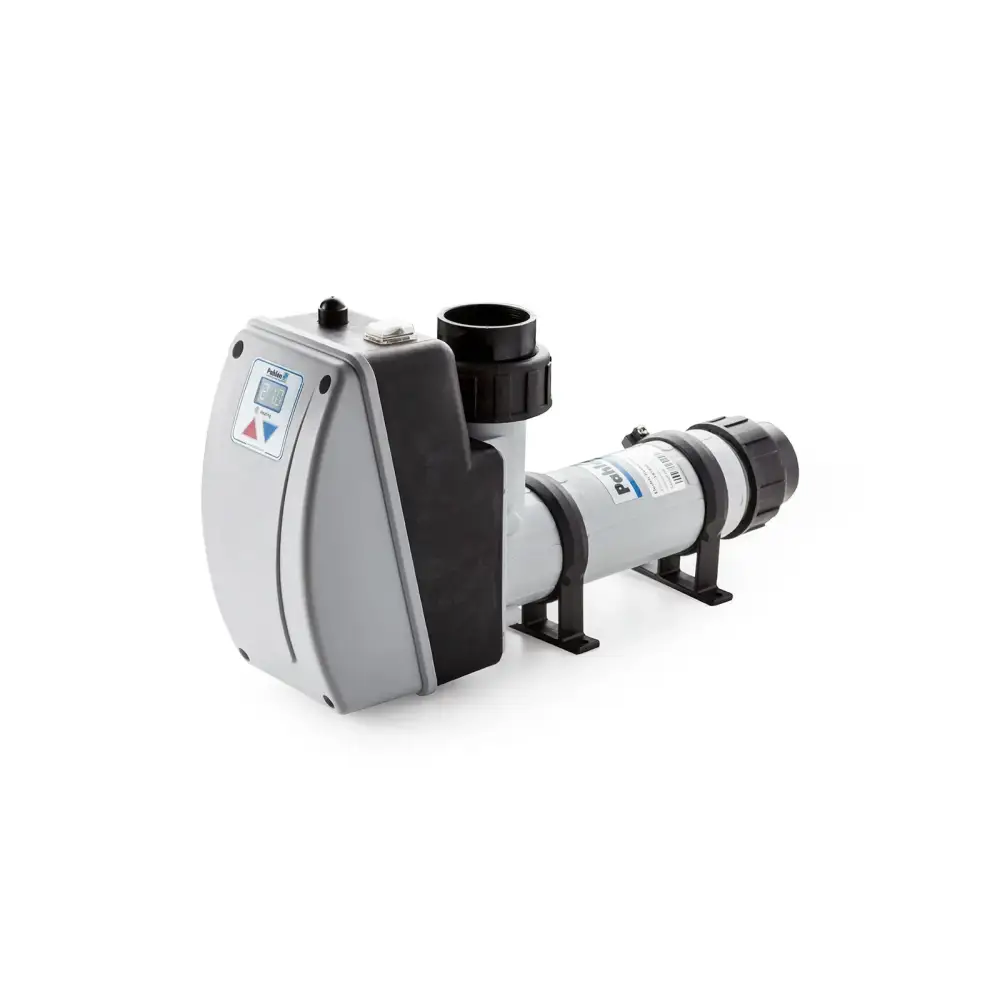

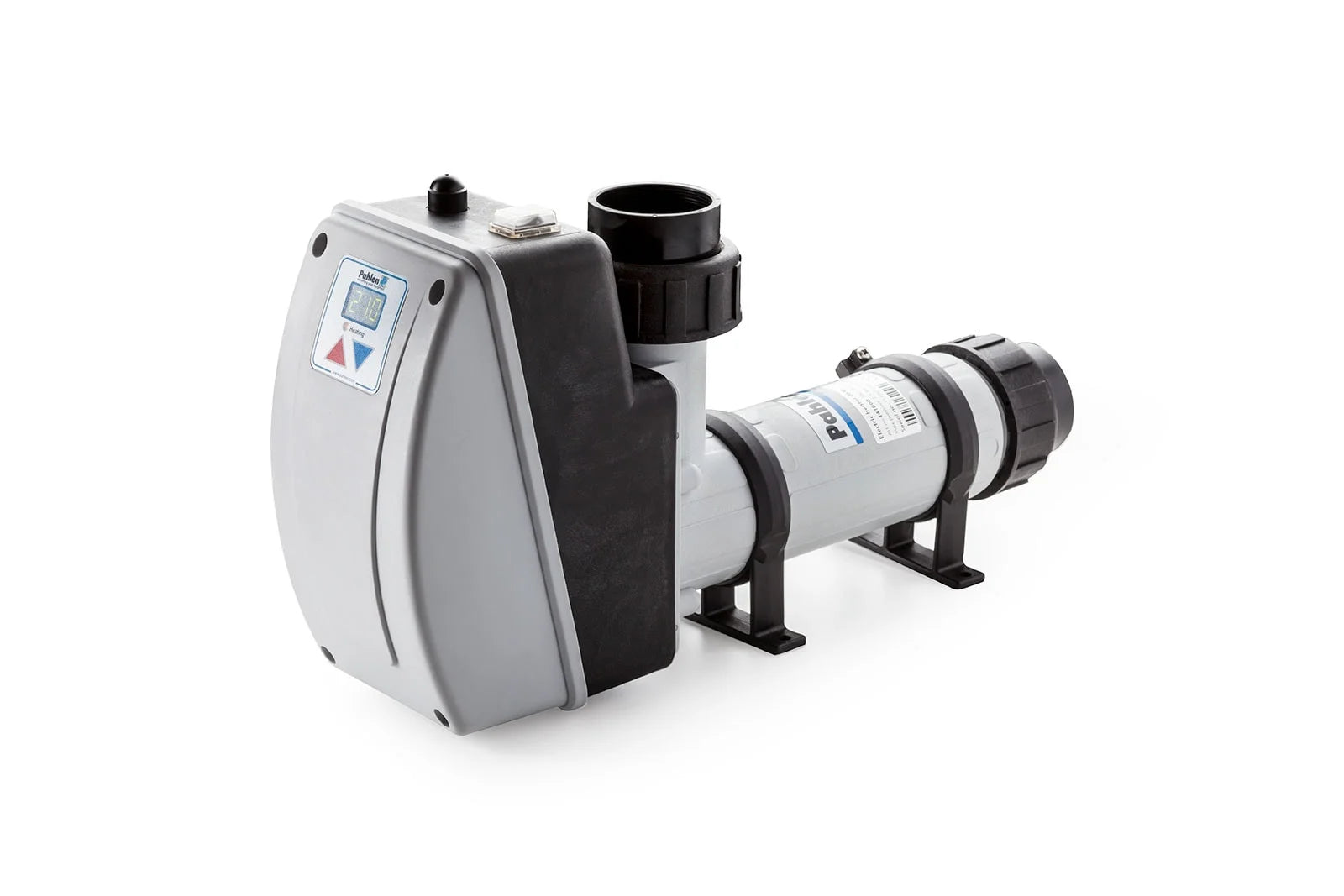

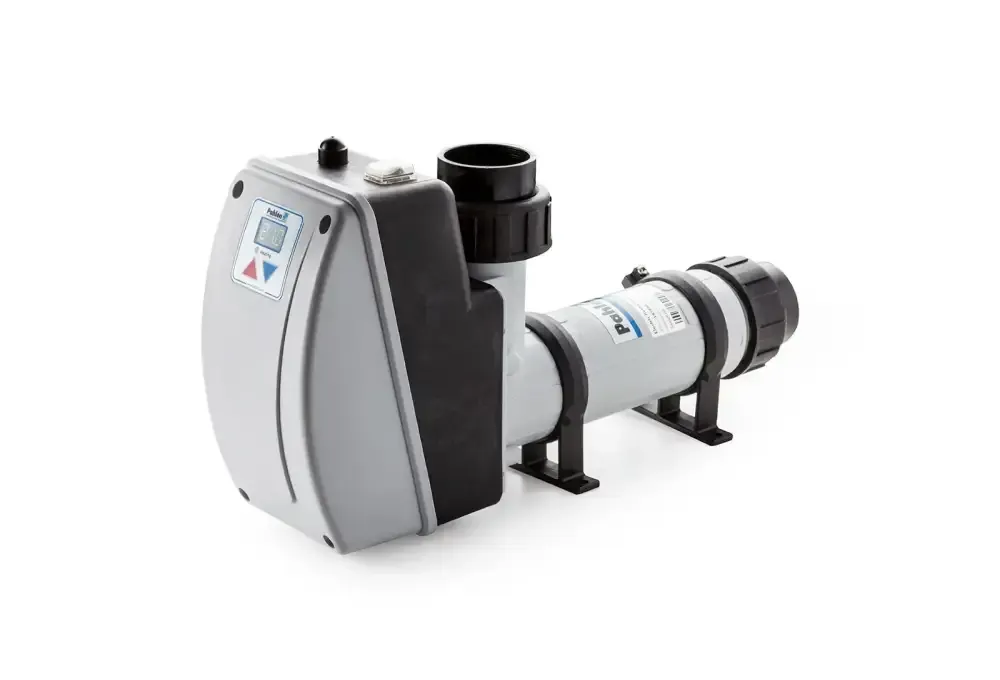

Pahlen Aqua HL electric heater

Electric Heater Aqua HL 3-15kW
The Electric Heater Aqua HL features digital control.
Electric heater with digital control, where the desired pool temperature can be easily set and the current pool temperature is displayed on an LED screen.

In addition to built-in overheating protection and flow monitoring, the heater has built-in contactors, making the installation of the heater easier. The immersion cassette is made of Incoloy 825 or titanium ASTM grade 1, and the casing is made of fiberglass-reinforced polypropylene.

Aqua HL is available with an output of 3-15 kW and up to 415 V (230 V single-phase, 400/415 V three-phase) and is equipped with connection fittings for gluing Ø 50 mm pipes.

Minimum flow is 90 l/min. Maximum pressure: 2 bar.

Electronic digital control panel
– Built-in safety device shuts off the heater at 45°C
– Optimized for low energy consumption
– Easy setting of pool temperature
– Clear digits show pool temperature and set temperature
– Clearly indicates when the heater is operating

Electric heater with digital display for easy setting of desired pool temperature

Features

Aqua HL comes complete with contactors and electronics.
Capacity 3-15 kW.
Digital control and display.
Made of reinforced thermoplastic.
Horizontal installation.
Electric heater made of Incoloy 825 or titanium.
Equipped with overheating protection and flow monitoring.
Connections Ø50 mm.
Equipped with dual contactors according to electrical safety standards.
